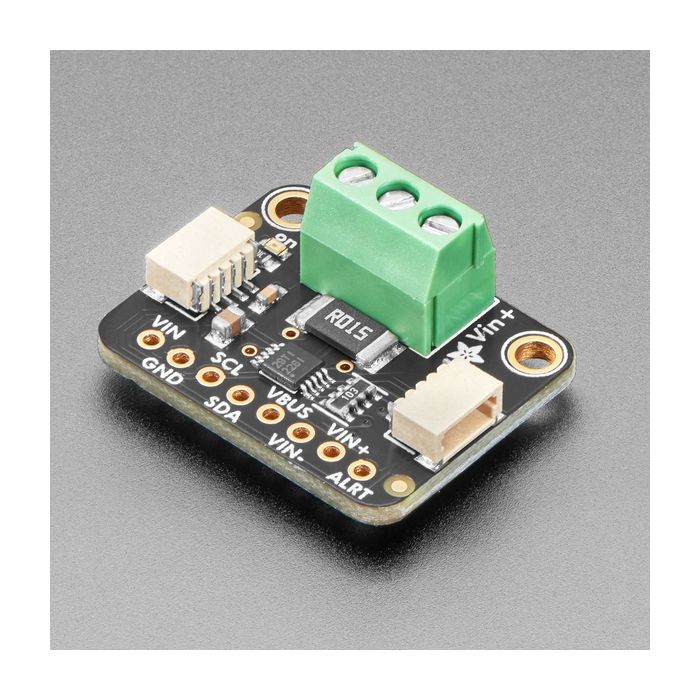

INA228 - I2C 85V, 20-bit High or Low Side Power Monitor - STEMMA QT / Qwiic

INA228 - I2C 85V, 20-bit High or Low Side Power Monitor - STEMMA QT / Qwiic

Artikelnummer: ADA-5832
Op voorraad

Product omschrijving

The INA228 is an amazing power monitoring chip, with best-of-everything support: up to 85VDC common-mode, high or low side measurements, 20-bit ADC for precision measurements from milliamp to Amp, and I2C interface.

With it you can measure high or low side DC current, the bus voltage, and have it automatically calculate the power. It can do so over impressive voltage, current, and temperature ranges with better than 1% accuracy, all while delivering the data in an easy to use format over I2C.

Works great with any microcontroller that is CircuitPython or Arduino compatible as well as single board computers such as the Raspberry Pi. It is compatible with 3V or 5V logic and can measure bus voltages up to +85VDC.

More information is available on the website of Adafruit.
